Caption: The SKYZONE SKY04X combines high-resolution OLED displays, adjustable optics, and an included SteadyView analog receiver.

Quick Verdict: Is the SKYZONE SKY04X Worth It?

The SKYZONE SKY04X is still one of the best premium choices for pilots who primarily fly analog FPV. Its bright OLED screens, immersive 46-degree field of view, adjustable focus, comfortable faceplate options, excellent DVR, and included SteadyView receiver create a polished experience without requiring immediate upgrades.

However, whether it is worth buying depends heavily on the price.

The original SKY04X V2 is difficult to recommend at anything close to its old $500-plus retail price. The official product page currently lists V2 variants as sold out while offering the newer SKY04X Pro for around $519. At that price, the Pro version, HDZero Goggles, or another system-specific digital headset may offer better long-term value.

The SKY04X V2 becomes much more attractive when found used or discounted. For an analog pilot who can get one in good condition for approximately $300–$400, it remains a genuinely premium headset that could last for years.

Worthflect rating

• Analog image quality: 9/10
• Receiver performance: 8.5/10
• Comfort and adjustment: 8.5/10
• DVR and usability: 9/10
• Digital flexibility: 7.5/10
• Value at full retail price: 7/10
• Value when discounted or used: 9/10

Overall rating: 8.6/10 for analog FPV pilots

Pros and Cons

What the SKY04X does well

• Sharp 1280 × 960 OLED displays with strong contrast
• Large and immersive 46-degree field of view
• Excellent image quality for analog cameras
• SteadyView diversity receiver included
• Independent focus and IPD adjustment
• Comfortable wide head strap
• Two faceplates for different facial shapes
• Easy-to-use shuttle-wheel menu controls
• H.264 DVR with smooth 60fps recording
• HDMI input for external digital receivers
• Flexible 2S–6S and USB-C power options
• External receiver-module support

What could be better

• Expensive when purchased near its original retail price
• Stock antennas are only adequate
• Analog video cannot fully use the display resolution
• External digital receivers add cables and extra hardware
• The stock module cover may not fit every third-party receiver
• Repairs and support may take longer than with brands that have regional service centers
• The newer SKY04X Pro provides better resolution for digital input

Who Should Buy the SKY04X?

The SKY04X makes the most sense for pilots who:

• Fly analog tiny whoops, freestyle quads or fixed-wing aircraft
• Want premium OLED goggles rather than bulky box goggles
• Need adjustable focus instead of separate corrective lenses
• Want a good analog receiver included in the package
• Regularly record DVR footage
• May add an external HDZero or Walksnail receiver later
• Find a discounted or well-maintained used unit

It is especially appealing to serious analog pilots. If most of your fleet still uses analog video transmitters, replacing every camera and VTX with digital equipment may cost considerably more than buying a good pair of analog goggles.

Who Should Skip It?

The SKY04X is less suitable when:

• You are starting FPV with a limited budget
• You have already decided to build a fully digital fleet
• You want native DJI compatibility
• You need the lowest possible HDZero latency
• You can buy the SKY04X Pro for nearly the same price
• You dislike managing external receivers, HDMI cables and separate power connections

New pilots who are unsure whether they will stay with analog may receive better value from an affordable box goggle. The SKY04X is a premium purchase, and many of its advantages become meaningful only after you have enough flying experience to notice differences in optics, receiver behavior and face fit.

Design, Comfort and What Comes in the Box

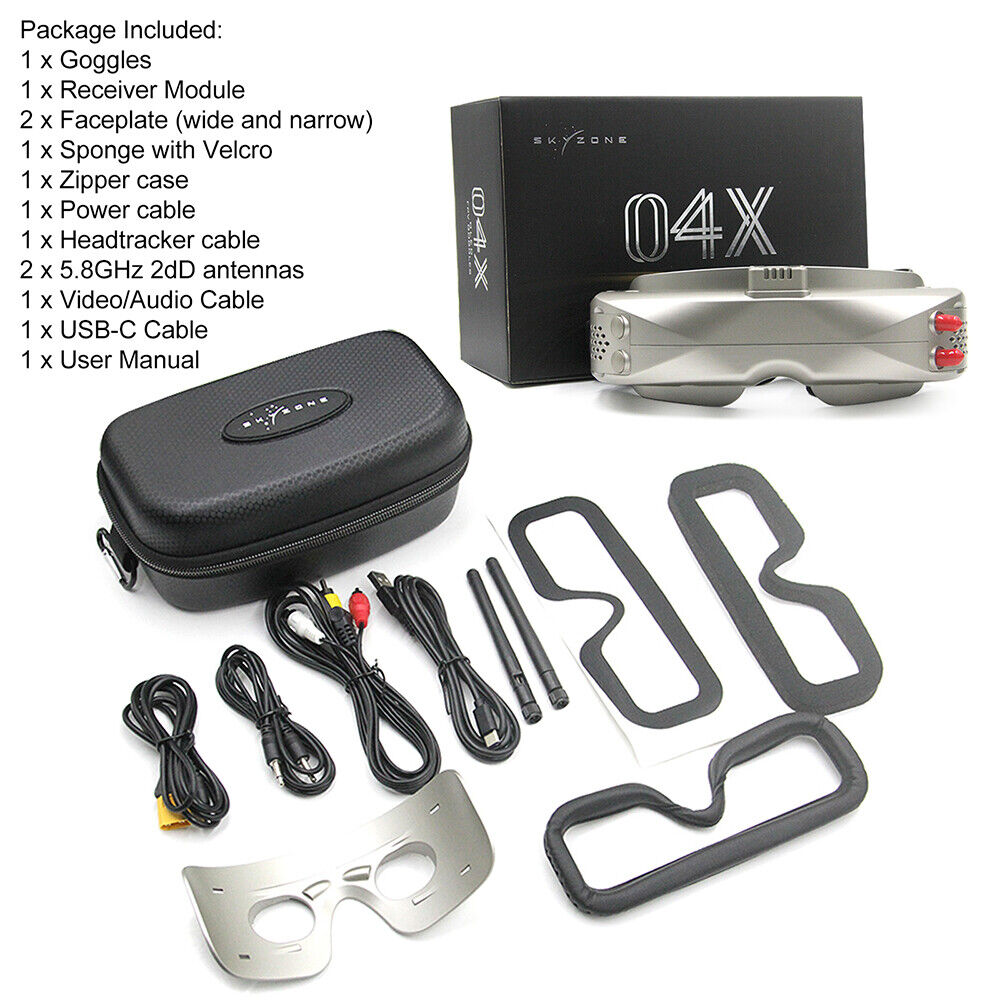

Caption: SKYZONE includes the receiver module, two faceplates, carrying case, basic antennas and several connection cables.

The SKY04X has the familiar compact “binocular” design used by high-end FPV goggles. At approximately 267 grams, it feels substantially less bulky than most box goggles while still offering a wide viewing experience.

The wide head strap distributes pressure more evenly than a narrow elastic strap. More importantly, SKYZONE includes both wide and narrow faceplates. This gives users a better chance of achieving a secure fit with minimal light leakage.

Face shape remains personal, so no goggle is guaranteed to fit everyone perfectly. Still, including multiple faceplates is more useful than adding decorative accessories. An independent hands-on review also found the wider strap secure and comfortable and considered the alternative faceplate options an advantage over the standard Fat Shark HDO2 package. (Oscar Liang)

The package normally includes:

• SKY04X goggles
• SteadyView receiver module
• Wide and narrow faceplates
• Replaceable face foam
• Zipper carrying case
• Two basic 5.8GHz antennas
• XT60 power cable
• USB-C cable
• AV cable
• Head-tracker cable

The included dipole antennas are usable for initial setup, but they do not reveal the receiver’s full potential. A quality omnidirectional antenna paired with a directional patch antenna is a sensible upgrade for pilots flying behind obstacles or at longer distances.

OLED Image Quality: The Main Reason to Buy It

The defining feature of the SKY04X V2 is its pair of 1280 × 960 OLED displays. They support both 4:3 and 16:9 aspect ratios and deliver a diagonal field of view of approximately 46 degrees.

OLED technology gives the image deep blacks, strong contrast and rich colors. In practical analog flying, this helps pilots distinguish branches, gates, shadows and changes in terrain more easily than with a washed-out LCD display.

The improvement is particularly noticeable when flying:

• Tiny whoops inside dim rooms
• Forest or bando freestyle lines
• Courses containing bright and dark areas
• Near sunset or in overcast conditions
• Cameras with strong dynamic range

The image is large enough to feel immersive without becoming completely overwhelming. Most pilots should still be able to view the OSD and screen corners without excessive eye movement.

Do not expect analog video to suddenly look like 960p digital footage. The incoming analog signal remains the limiting factor. The high-resolution OLED panels improve the presentation of that signal through better scaling, contrast and optics, but they cannot restore detail that the camera and transmitter never captured.

This is also why upgrading from SKY04X V2 to SKY04X Pro does not transform analog image quality. The Pro’s 1920 × 1080 panels are more valuable when using an external digital receiver than when viewing traditional analog video. The Pro also increases the field of view to 52 degrees, which feels more immersive but may make the corners harder to see for some pilots. (Manuals+)

Focus and IPD Adjustment

The goggles provide separate interpupillary-distance sliders and focus controls for each eye. The officially stated IPD range is 58–71mm, while the focus range is listed as approximately -6 to +2 on the current specification sheet. (SKYZONEFPV)

This matters more than the specification table suggests.

A high-resolution screen is not useful when the optics do not align with your eyes. After adjusting each side independently, menu text, OSD information and distant objects become much easier to see. Many nearsighted users can fly without installing separate diopter inserts.

The adjustment process should be done carefully:

1. Display the goggles’ menu or a clear OSD.
2. Close one eye and adjust the opposite lens.
3. Repeat for the other eye.
4. Move the IPD controls until the two images merge cleanly.
5. Confirm that the corners remain visible.

Once configured correctly, the SKY04X can appear noticeably sharper than it does with the factory settings.

SteadyView Receiver Performance

Caption: The included SteadyView diversity receiver combines information from two antenna signals to reduce rolling and image breakup.

The included SteadyView receiver is a major reason the SKY04X offers better value than goggles sold without a receiver.

Instead of simply switching between two antennas, SteadyView combines information from both receiver paths. The goal is to reduce rolling, tearing and sudden changes when one antenna temporarily receives a weaker signal. SKYZONE’s current V3.3 version supports 48 channels across six bands.

In ordinary freestyle, racing and indoor whoop flying, the receiver performs well enough that most owners will not need to immediately purchase RapidFire or TBS Fusion. Independent testing has described its performance as competitive with RapidFire, although results depend heavily on antenna selection and flying environment.

Signal breakup is generally progressive rather than abrupt. That is one of analog FPV’s practical advantages: pilots often receive warning through static before completely losing the image.

The goggles also include Fat Shark-style module bays. Aftermarket receivers can be used, but compatibility is not entirely seamless. Some modules may require a 3D-printed cover, and SKYZONE’s proposed dual-module “quadversity” setup requires compatible SKYZONE modules because third-party receivers do not provide the necessary RSSI data to the goggles.

For most buyers, the sensible approach is simple: use the supplied SteadyView module first and spend money on better antennas before replacing the receiver.

Controls, Ports and Everyday Usability

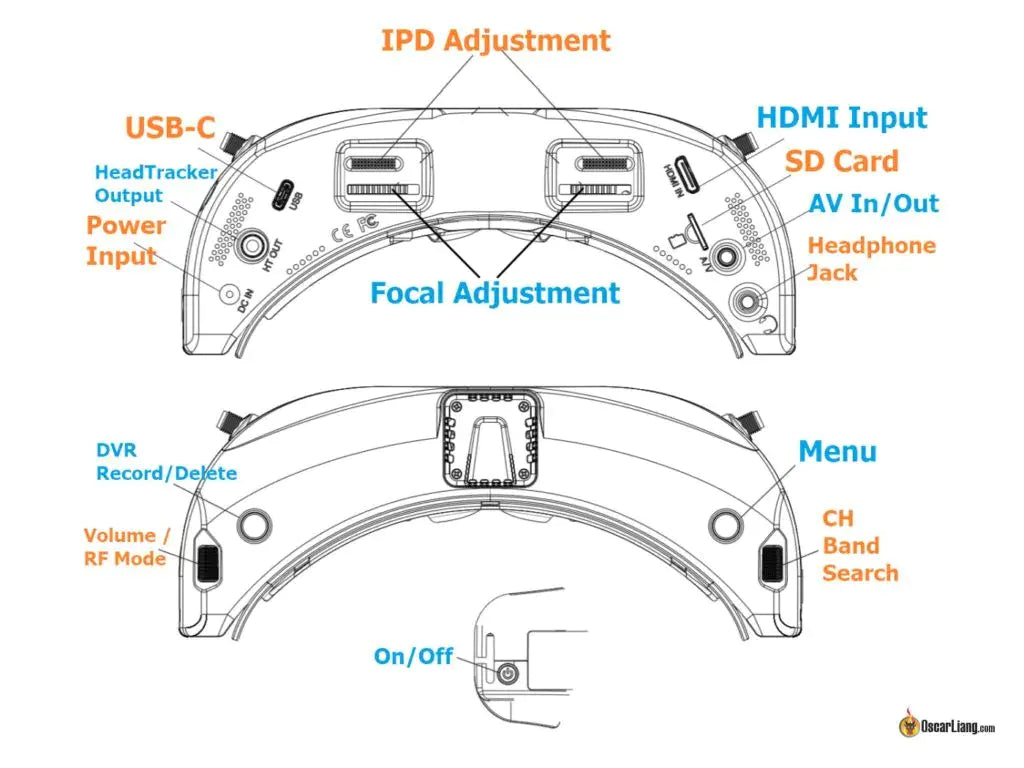

Caption: The SKY04X provides HDMI, USB-C, AV, audio, head-tracking and microSD connectivity alongside independent optical adjustments.

Image source: SKYZONE/Oscar Liang product diagram.

SKYZONE’s shuttle-wheel controls are easier to operate while wearing the goggles than clusters of small multifunction buttons. The menu allows adjustment of brightness, contrast, saturation, hue, sharpness, fan speed, voltage calibration and DVR settings. (Oscar Liang)

The goggles include:

• HDMI input
• AV input and output
• USB-C port
• microSD card slot
• Headphone output
• Head-tracker output
• Barrel power connector

Power flexibility is excellent. The SKY04X accepts 2S–6S LiPo batteries through the supplied cable and can also operate from a 5V USB-C power source. A battery can therefore remain in your pocket rather than adding weight to the head strap.

The HDMI input allows the goggles to work with compatible external digital receivers or as a display for an FPV simulator. This adds flexibility, but it should not be confused with native digital integration. A Walksnail or HDZero receiver still requires additional hardware, power and cabling.

DVR Quality

The SKY04X V2 records H.264 video at up to 60fps and supports memory cards up to 128GB according to the current official specification.

Its DVR is one of the stronger implementations among traditional analog goggles. Recording is useful for:

• Reviewing crashes
• Locating a lost quad
• Checking interference
• Studying racing lines
• Saving casual flight footage

The file still records the analog feed, so it will not replace an onboard action camera. Static, OSD data and signal breakup remain visible. However, the recording is smooth and useful, particularly compared with older DVR systems that introduced dropped frames or heavily compressed footage.

SKY04X V2 vs SKY04X Pro

Feature	SKY04X V2	SKY04X Pro
Display type	OLED	OLED
Resolution	1280 × 960	1920 × 1080
Field of view	46°	52°
Aspect ratio	4:3 and 16:9	4:3 and 16:9
Analog receiver	SteadyView	SteadyView
Best use	Premium analog FPV	Analog plus external digital VRX
Main advantage	Easier view of full screen	Higher digital-input resolution
Main drawback	Older display resolution	Larger FOV may hide corners

For analog-only flying, the V2 remains sufficient. The higher-resolution Pro does not create more detail in the original analog feed.

For pilots planning to use Walksnail or another HDMI-based receiver, the Pro is easier to justify. Its full-HD panels preserve more of the digital receiver’s output, while the larger field of view produces a more cinematic image. SKYZONE states that the Pro uses 1920 × 1080 OLED panels with a 52-degree FOV.

For competitive HDZero flying, native HDZero goggles remain the stronger option because the SKY04X platform’s HDMI behavior does not provide the complete high-refresh, lowest-latency HDZero experience.

Price and Value

This is where the recommendation changes.

At its original premium price, the SKY04X V2 faces stronger competition than it did when first released. Digital systems have matured, SKYZONE has introduced the Pro version, and HDZero goggles can combine native digital video with strong analog capability through an additional module.

The current official SKYZONE listing shows the V2 variants as sold out at approximately $529, while selected SKY04X Pro colors are listed around $519. Availability and pricing may change, but this makes purchasing the V2 at full retail price difficult to defend.

Recommended buying thresholds

• Below $300 used: Excellent value if lenses and OLED panels are clean
• $300–$400: Strong purchase for a committed analog pilot
• $400–$450: Reasonable only in excellent condition with useful accessories
• Above $450: Compare directly with the SKY04X Pro and digital-native options
• Around $500 or more: The original V2 is generally not the best buy

When purchasing used, inspect for sun damage, OLED burn-in, scratched lenses, damaged focus controls and faulty module connectors. The lenses should never be exposed directly to sunlight because focused sunlight can permanently damage the displays. (ManualsLib)

Final Verdict

Yes, the SKYZONE SKY04X is still worth buying but mainly for analog pilots and only at the right price.

Its OLED image, excellent optics, adjustable focus, comfortable fit, capable SteadyView receiver and high-quality DVR remain competitive. It offers the kind of refined experience that makes every flying session easier, especially when moving from entry-level box goggles.

It is not the automatic recommendation it once was. At full retail price, the SKY04X Pro offers better support for external digital receivers, while native digital goggles provide cleaner integration for pilots already committed to HDZero, Walksnail or DJI.

Choose the SKY04X V2 when analog remains your priority and you find a discounted or used unit in good condition. Choose the Pro when you want to combine premium analog performance with higher-resolution HDMI video.

Worthflect recommendation: Buy it for analog FPV below approximately $400. Compare alternatives carefully above that price.

Frequently Asked Questions

Is the SKYZONE SKY04X good for beginners?

It is excellent but expensive. Beginners who are confident they will continue flying analog can buy it once and avoid replacing cheaper goggles later. Pilots who are still exploring the hobby may be better served by an affordable box goggle.

Does the SKY04X support digital FPV?

It accepts HDMI input, so compatible external digital receivers can be connected. It is not a native DJI, Walksnail or HDZero headset.

Is the included SteadyView receiver good enough?

Yes. For most pilots, the supplied receiver performs well enough that better antennas should be the first upgrade. A premium aftermarket module is optional rather than essential.

Can the SKY04X be powered by a power bank?

Yes. It supports 5V power through USB-C as well as 2S–6S LiPo power through its DC input.

Is the SKY04X Pro noticeably better for analog?

Not dramatically. Its higher-resolution display benefits digital HDMI input more than ordinary analog video. The larger 52-degree FOV is more immersive, although some users may find it harder to monitor the corners.

Should I buy SKY04X V2 or SKY04X Pro?

Buy the V2 when it is significantly cheaper and your fleet is primarily analog. Buy the Pro when the price difference is small or you plan to use an external digital receiver.

Can glasses wearers use the SKY04X?

The goggles are designed to provide independent focus and IPD adjustment, allowing many users to fly without wearing glasses inside the headset. However, people with strong astigmatism may still require corrective solutions.

---
